3D OBJECT

-

3D Object

 In this project I was tasked with making an object in Rhino and to prepare it for 3D printing. The twist? Working with a teammate. Luckily my partner and I were able to work very efficiently on our project.

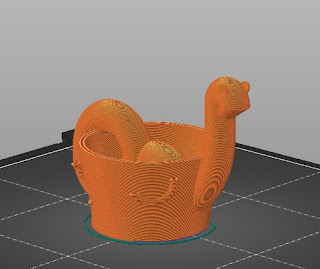

The way we combined our projects together was as we were talking we where really wanted to do macaroni and I ended up making a snake while we were messing around. Erin mad noodle shapes and I had made vases shapes. When combined noodle snake. So that was the start of our project. We both made objects like pots or a cup and we decided to take that and run with it.
